Ø90 Bend flexible conveyor OEM IS AVAILABLE!!!

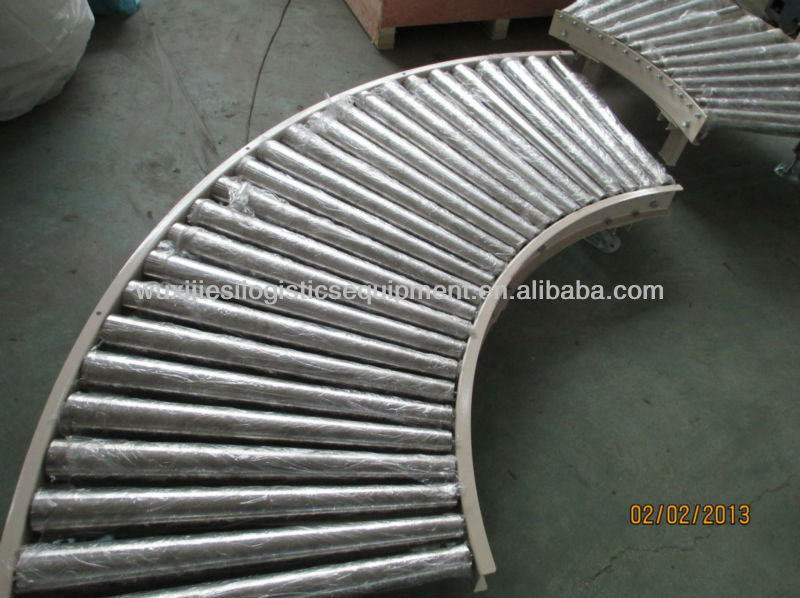

D90 bend flexible conveyor is made up with tapered rollers,with rubber cover,suitable for turning joint situation .
bend angle:90 degree
bend radius:900mm
frame:90mm U-steel
width: 900mm~1200mm
Load capacity: max about 100kg
| roller width W (mm) | 900 | 1,000 | 1,100 | 1,200 | ||
| small radius A(mm) | roller outer diameter | 42.7 | 42.7 | 42.7 | 42.7 | |
| shell thickness | 3.5 | 3.8 | 4.5 | 4.5 | ||
| big radius B(mm) | roller outer diameter | 86.7 | 91.0 | 95.3 | 100.0 | |
| shell thickness | 2.0 | 1.8 | 2.0 | 1.8 | ||
| SPE. | bend radius R | OD(φ)×shell T(t) production | frame sizeI×K×t conveyor height(H) | roller width W | roller pitch P (roller QTY) | conveyor angle θ | roller strength (kg) | conveyor weight (kg) | ||||||
| R-TCL | 900 | 15 pipe semi-circle | [ 90×30×3.2 97.5 | 900~1,200 any sizes | 100(24)/150(16) 200(12) | 90° | 100 (1,000W) | 186.8 (1,000W /100P) | ||||||
roller package
