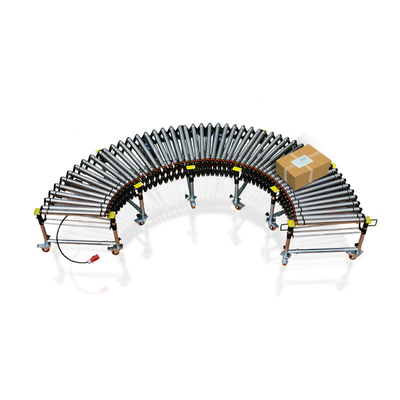

Motorized Expandable roller conveyor - O belt driven
The O-belt roller conveyor line is driven by the main shaft and high-strength O-belt. It has the characteristics of beautiful appearance, stable transmission, low noise, and easy assembly. It is widely used in Foods, Express, Logistics, E -commerce Warehousing, Beverages, etc. Industry. O-belt spool drive conveyor has a larger load capacity than simple O-belt drive conveyor.
a.Large load range :10-30kgs
b.High transmission efficiency
c.Stable operation
d.easy to install and maintainance.
| Drive mode | O-belt driven |
| Width | 500/600/800/1000/1200mm |
| Expandable Length / unit | 1000mm /1250mm /1500mm |
| shorten length /unit | 530mm |
| Roller Dia. | 50mm |
| Pitch Size | 60/80/110mm |
| Central distance | 110/140/160mm |
| Roller thickness | >=1.2mm |
| Adjustable height | 450-650mm 570-850mm 750-1100mm optional or customized |
| Power | 60-90w/m |
| Material of roller | Carbon steel /stainless steel 201/304 as customized |
| Material of Frame | Carbon steel or as customized |
| Function | speed adjustable,emergency stop,bidirectional , all purpose caster with safety brake |
Packaging Detail: inner by PE film winding then wooden box packing
Delivery Detail: According to order quantity
1.Suitable for indoor environment
2.Suitable for transportation of box goods with flat bottom in various industries,such as Packing industry,Express industry,Tire industry, Pharmaceuticals industry, Furniture industry,Tobacco industry, Warehousing,logistic, Food industry, Super market, etc.
Pre-sale service:
1. OEM &ODM Service
2. Special conveyor or other related machines' customer-made
In-sale service:
1. Orders comfirm and production started strictly according to constract.
2. Quality testing before delivery and make detail working records for every spares.
3. Items checking while doing delivery and make a detail packing list for each item.
4. Shipment after customers' comfirm of delivery.
After-sale service:
1. Roller conveyors setting video to show how to connect the spares.
2. Technologists training is possible if needed.
3. Spares supply in long term.
